Overview:

European-style cable distribution box is a cable-based engineering equipment widely used in power distribution network systems in recent years.
Its main features are two-way door opening, using wall bushings as connecting busbars, small length,
The cables are clearly arranged and the three-core cables do not require large-span crossovers. The electricity it uses
Cable glands comply with DIN47636 standard. Generally, bolted connection type with rated current 630A is used.
Cable connector.

Working Condition:

• Ambient temperature: Maximum temperature: +40℃, minimum temperature -30℃;
• Wind speed: Equivalent to 34m/s (not more than 700Pa);
• Humidity: Daily average relative humidity is not more than 95%, monthly average relative humidity is not more than
  95%;
• Shockproof: Horizontal acceleration is not more than 0.4m/s2, vertical acceleration is not more than 0.15m/s2
• Installation site inclination: not more than 3°;
• Installation environment: The surrounding air is not obviously polluted by corrosive, flammable gases, water vapor, etc., and there is no severe vibration at the installation site.

Note: Please consult with our company when ordering this product beyond the above conditions.

Technical Parameters of Cable Junction Box With Switch：

Technical Parameters of Cable Junction Box Without Switch:

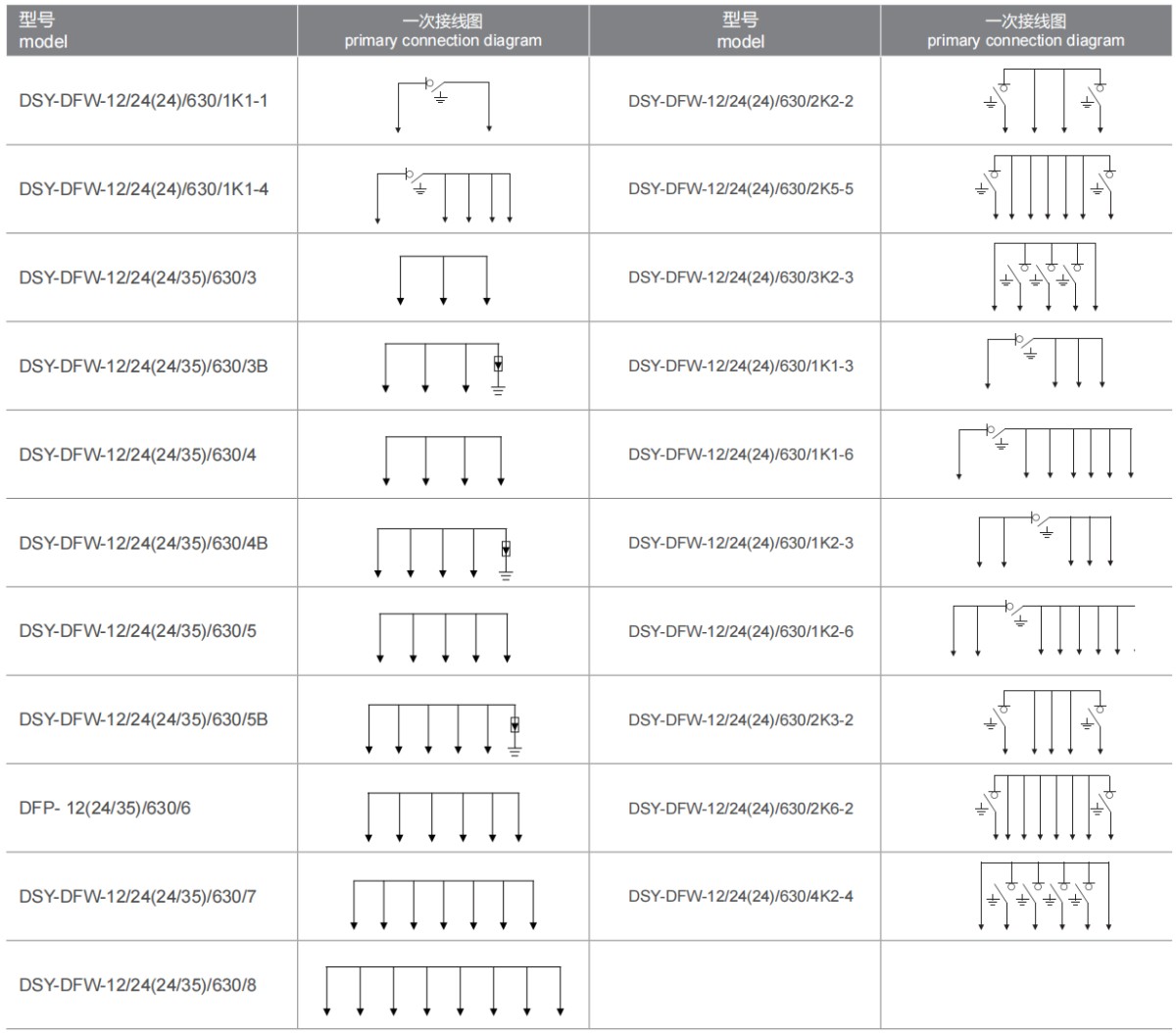

Typical Wiring Scheme of Sweitchgear:

Note: Users can choose lightning arresters, short-circuit fault indicators, fuses, etc.

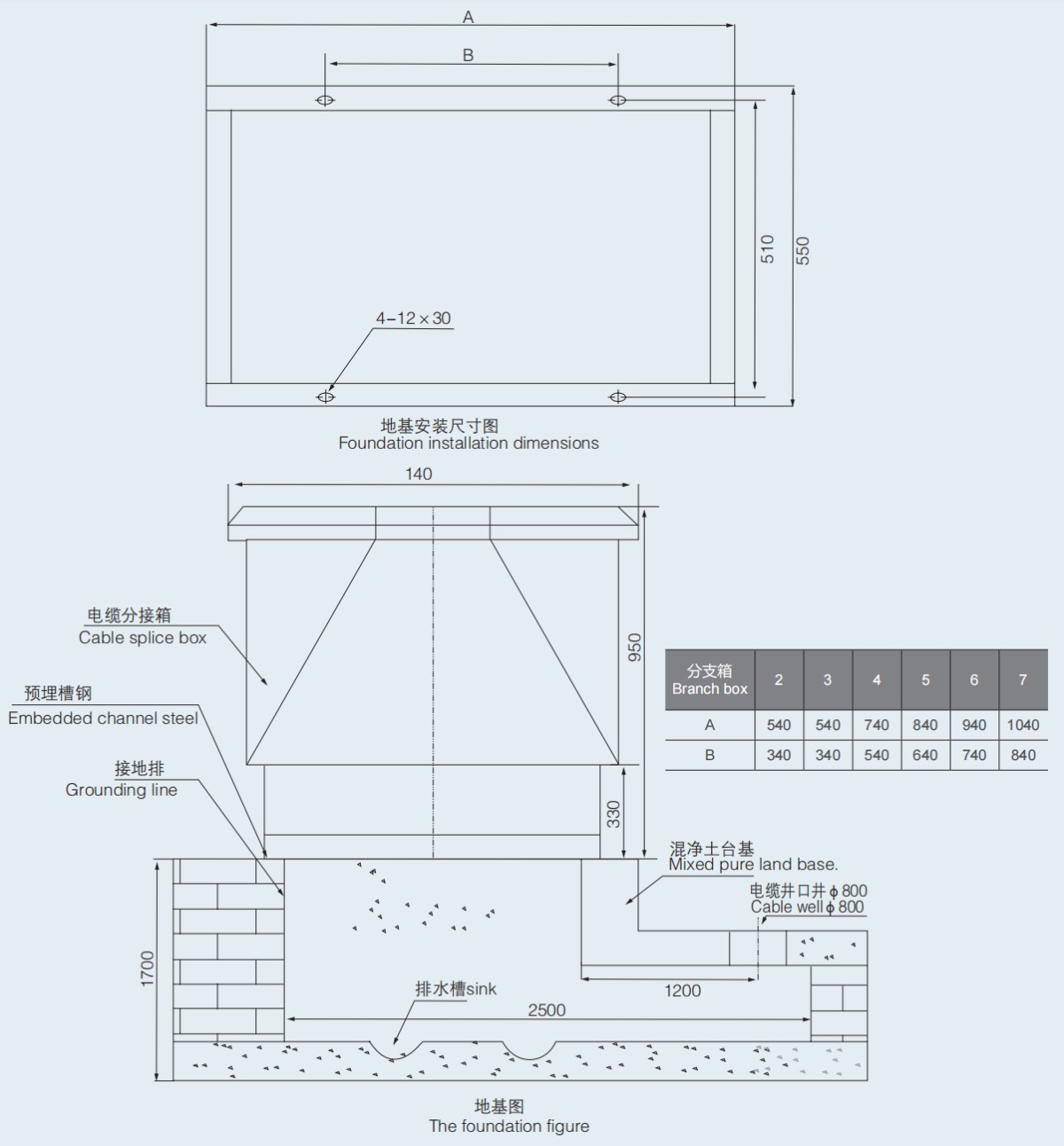

European Cable Junction Box Foundation Diagram:
